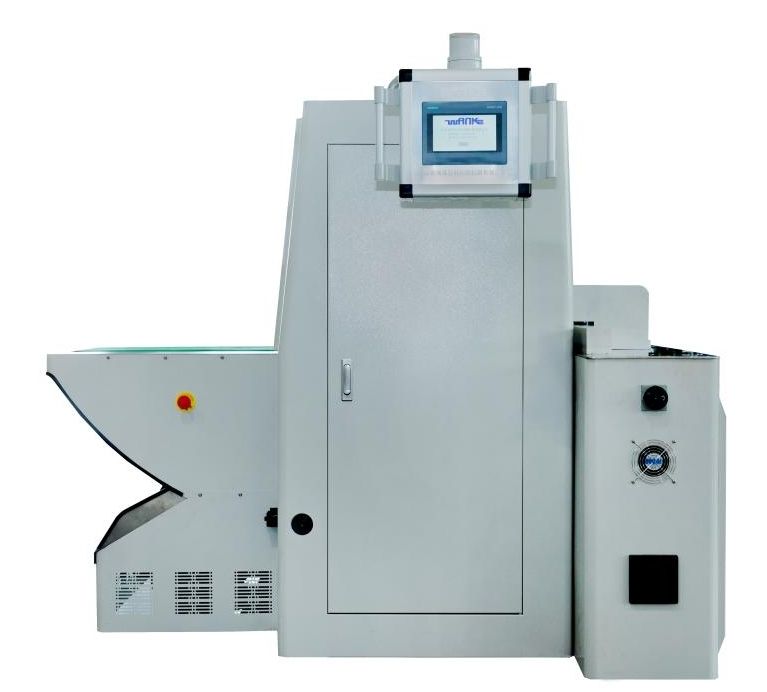

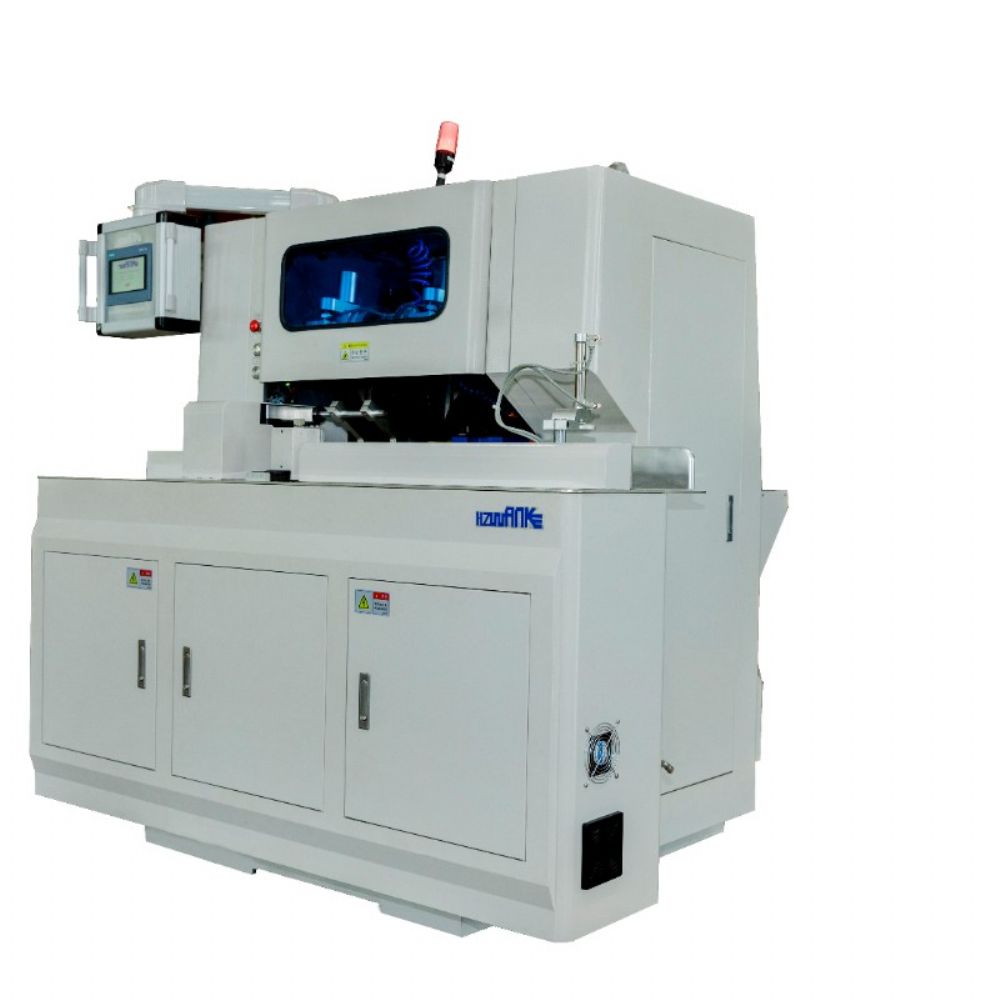

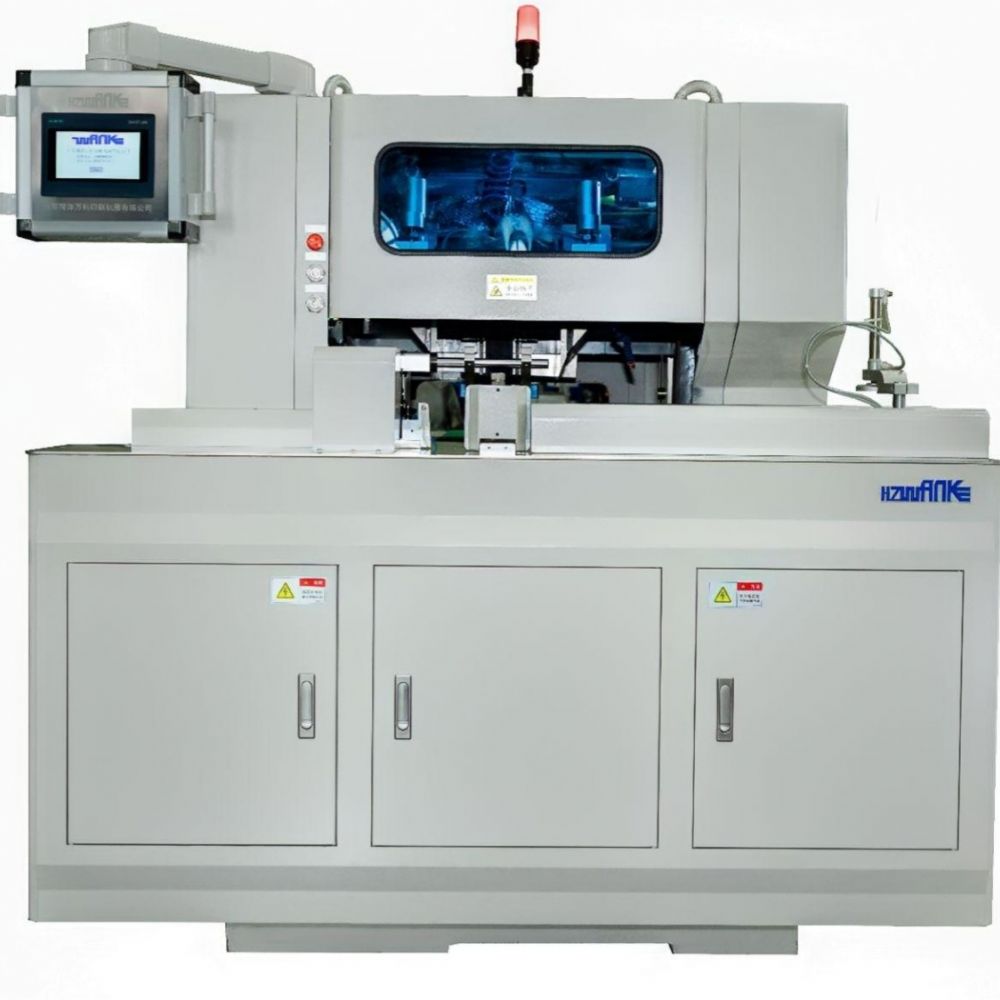

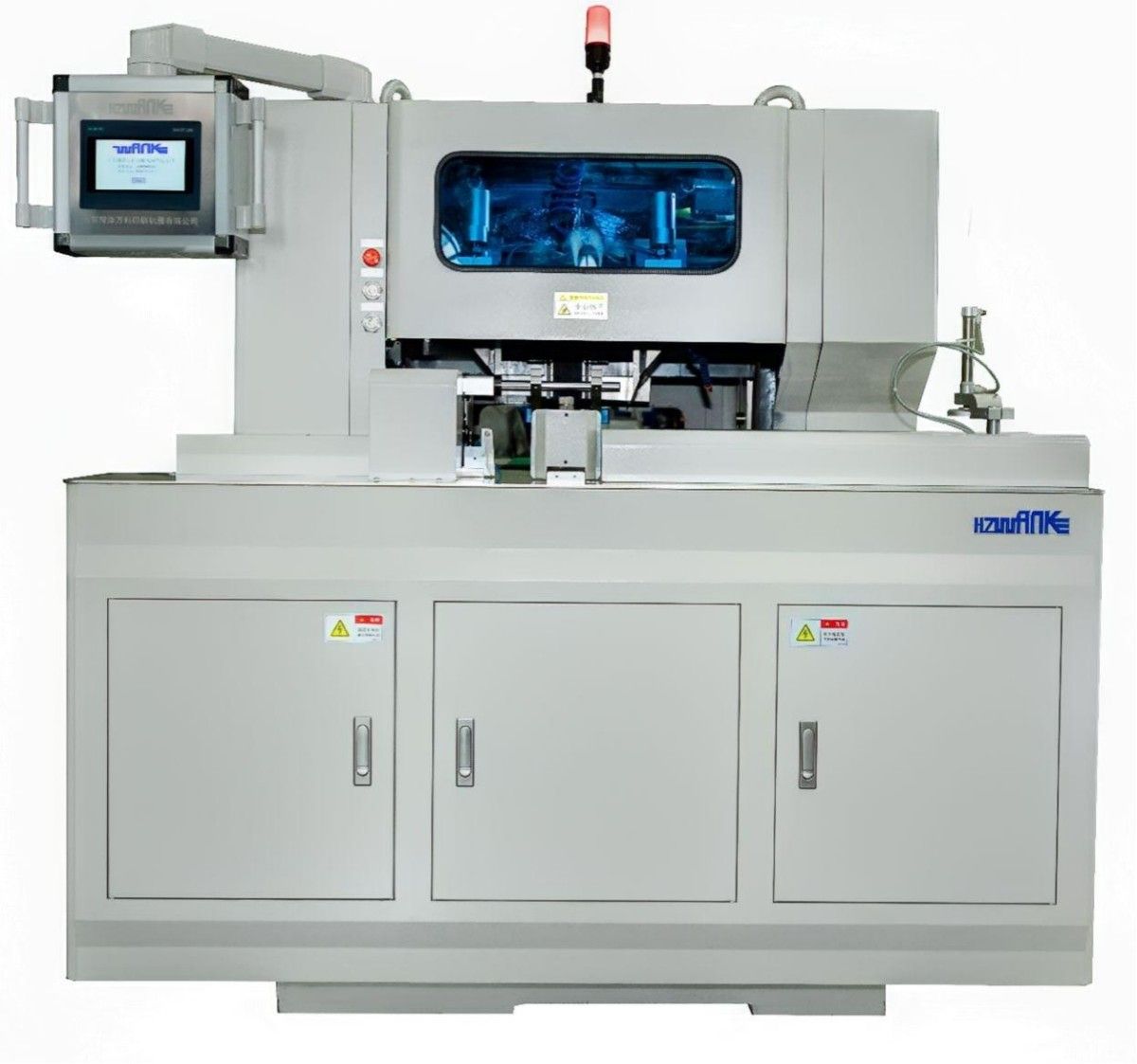

QS100S-全自动数码三面切书机

Model QS100S Fully Automatic Digital Three-Knife Book Trimmer

一、设备定义Equipment Definition

1、全自动数码三面切书机（俗称数码三面刀），是适配数码快印、短版按需印刷的智能印后裁切设备，专门对胶装、锁线、精装书本一次性裁切天头（上）、地脚（下）、书口（前） 三边毛边，保留装订书脊；搭载全伺服数控、扫码自动调机、JDF 流程互联，解决传统三面刀换单慢、人工调规、精度差的痛点，主打一本起裁切生产模式。

English: Fully automatic digital three-knife book trimmer (digital three-side cutter for short) is an intelligent post-press trimming equipment for digital quick printing and short-run on-demand printing. It trims three raw edges (head, tail and front edge) of perfect-bound, thread-sewn and hardcover books in one pass while keeping the book spine intact. Equipped with full servo numerical control, barcode auto setup and JDF workflow connection, it solves the drawbacks of traditional three-knife trimmers such as slow job change, manual sizing and low precision, supporting single-book batch production.

2、伺服数控裁切定位系统（数码三面切书机核心） 全轴无刷伺服电机驱动，前刀、左右侧刀、压书规、夹书机构全自动伺服电动调规，无手动丝杆调节；精度 ±0.05mm，可存储几十套书本尺寸参数一键调用。

English: Servo CNC Trimming & Positioning System (Core of Digital Three-Knife Trimmer) All axes are driven by brushless servo motors. The front knife, left & right side knives, pressing gauge and book clamping unit are fully servo electrically adjusted without manual lead screw tuning. Trimming precision reaches ±0.05mm, and dozens of book size parameters can be stored and recalled with one touch.

3. 三刀同步式：三把独立刀具，天、地、书口同时裁切，高速量产，产能 4000–8000 册 / 小时。

English: Simultaneous Three-Knife Design: Three independent cutters trim head, tail and front edge at the same time for high-volume production, with output of 4,000–8,000 books per hour.

4、智能人机与数据模块彩色触摸屏，支持参数可视化输入；二维码扫码读参数、对接印刷 JDF 生产流程，自动切换尺寸，实现 “一书一规格” 无人换单；自带故障自诊断、产量计数、参数记忆功能。

English: Intelligent HMI & Data Module Color touch screen supports visualized parameter input. It reads parameters via QR code scanning and connects to printing JDF workflow to switch sizes automatically, realizing unattended job change for variable-size single books. Built-in functions include self-diagnosis, production counter and parameter memory.

二、工作流程（全自动无需人工干预）Fully Automatic Working Process

1. 待裁胶装书堆放入料台，自动书本输送，完成自动裁切。

English: Stack bound books to be trimmed on the feeding table; automatic book conveying and full automatic trimming.

2. 扫码识别书本二维码 / 读取 JDF 工单，伺服自动调整长宽厚裁切尺寸；无码则触摸屏输入成品尺寸。

English: Scan book QR code or read JDF work order; servo system automatically adjusts trimming length, width and thickness. If no code is available, input finished sizes via touch screen.

3. 机械夹书定位、压力均匀压紧书本，避免书脊压裂、纸张滑移。

English: Mechanical book clamping for precise positioning with uniform pressing force to prevent spine cracking and paper shifting.

4. 三刀同步 /依次裁切天头、地脚、书口三边。

English: Three knives trim head, tail and front edge simultaneously.

5. 废边自动吹落收集，成品书本自动出料堆垛，循环持续加工。

English: Trim waste is blown off and collected automatically; finished books are discharged and stacked for continuous cyclic processing.

6. 不同尺寸书本连续进料时，设备实时自动重新调规，不用停机改参数。

English: When feeding mixed-size books continuously, the machine resizes automatically in real time without shutdown for parameter modification.

三、技术参数Technical Parameters

1. 裁切尺寸：最小 110×130mm，最大 320×260mm（适配 /A4/A5 画册、标书、相册）。Trimming Size: Min 110×130mm, Max 320×260mm (Compatible with A4/A5 picture albums, tender documents, photo books)

2. 书本厚度：5–70mm（薄画册、厚教材、精装相册全覆盖）Book Thickness: 5–70mm (Suitable for thin catalogs, thick textbooks and hardcover photo albums)

3. 生产速度： 4000–8000 本 / 小时；Production Speed: 4,000–8,000 books per hour

4. 整机重量：2300kg。Net Machine Weight: 2300kg

5. 外形尺寸（长X 宽X 高）（mm）1750*1900*1700。Overall Dimension (L×W×H): 1750×1900×1700mm

6. 总功率（kw）:6KW。Total Power: 6KW

7. 驱动方式：全伺服定位 + 机械裁切压紧。Drive Mode: Full servo positioning + mechanical trimming & pressing

8. 存储能力：触摸屏存储 30–50 套常用书本尺寸。Storage Capacity: 30–50 sets of common book sizes stored on touch screen

性能特点Performance Features

一、适用行业与加工产品Applicable Industries & Processed Products

1、图文快印店、数码印刷工厂：标书、宣传画册、作品集、企业手册、台历。Digital printing shops & digital printing factories: tender documents, brochures, portfolios, corporate manuals, desk calendars.

2、按需出版、小众图书厂：短版小说、教辅、写真相册、锁线精装书。On-demand publishing & small-scale book manufacturers: short-run novels, teaching auxiliary books, photo albums, thread-sewn hardcover books.

3、广告文创、包装装订：样册、画册、纪念册、软装样本书。·  Advertising, cultural innovation and packaging binding: sample catalogs, picture albums, commemorative books, soft furnishing sample books.

4、配套产线：可与数码无线胶装机连线，形成印刷→胶装→三面切全自动印后流水线。Supporting production line: It can be connected with digital perfect binders to form a fully automatic post-press production line: Printing → Perfect Binding → Three-side Trimming.

三、设备核心特点总结II. Summary of Core Equipment Advantages

1、数码智能，适配短单：扫码自动换规格，解决数码印刷 “多品种、少批量、频繁换活” 痛点。Digital intelligent design for short orders: Automatically switch specifications via QR code scanning, solving the pain points of digital printing including multiple varieties, small batches and frequent job changes.

2、高精度成品：伺服精准定位，三边裁切均匀，无压痕、不伤书脊。High-precision finished products: Precise servo positioning ensures even trimming on three sides without indentation or damage to book spines.

3、高度自动化省人工：自动送料、调规、出料，一人多机，降低人工成本。·  High automation to save labor: Automatic feeding, size adjustment and discharging; one operator can manage multiple machines to cut labor costs.

4、柔性兼容性强：薄本、厚本、胶装、锁线、精装均可加工。Strong flexible compatibility: It can process thin books, thick books, perfect-bound books, thread-sewn books and hardcover books.

5、安全易维护：全封闭防护、自动清废，触摸屏故障提示，保养简单。Safe and easy to maintain: Fully enclosed protective cover, automatic waste removal, touch screen fault prompt and simple daily maintenance.
